福祿克233 /遠程顯示汽車數字萬用表盒
名稱：萬用表
品牌：
型號：
簡介：The new Fluke 233/A Remote Display Automotive Digital Multimeter Kit allows you to be in two places at once. The removab...
申請服務
- 產品介紹
Imagine the possibilities
What would you do if you could be in two places at once?

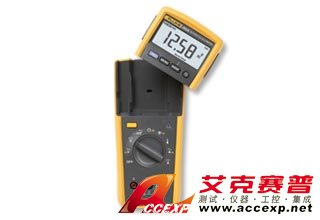

By simply sliding the wireless display out of the Fluke 233/A’s meter body, the technician can place the display where it is most easily seen—up to 10 meters (33 feet) from the point of measurement—while putting the meter in the best position to take measurements. The removable display has a magnetic back and flat bottom so it can be mounted or placed on any flat surface where it can be conveniently seen. When the display is attached to the meter body the Fluke 233/A operates as a conventional multimeter.
The detachable wireless display lets automotive technicians:
Find a comfortable position to view and record test data, even when the test location is hard to reach or in a dirty or noisy environment.
Attached test leads to brake lights while sitting in the driver seat, pressing the brake pedal and viewing the display.
Safely view underhood measurements on moving vehicles.
Separate the tasks of positioning the meter and reading test results, devoting full attention to each job—and working more safely.
Run tests and read results at a safe distance from high-voltage, high-current systems. The Fluke 233 is safety rated for use in CAT III 1000V, CAT IV 600V working environments, important for technicians working on hybrid vehicles.
Designed by Fluke engineers and manufactured at the Fluke Worldwide headquarters in Everett, Washington, the Fluke 233 is safety rated for use in CAT III 1000V, CAT IV 600V working environments. This is important for technicians working on hybrid vehicles, which routinely work with high-voltage, high-current systems not found on conventional vehicles.
特點
真有效值交流電壓和電流，確保精確測量各種非線性信號
可以測量高達 1000 V 的交流電和直流電
可以測量高達 10A 的電流（20 A，持續 30 秒）
10,000 μF 電容量程
頻率可達 50 kHz
內置測溫表，無需攜帶單獨的儀器即可獲取溫度讀數
電阻、連續性和二極管測試
低耗能無線技術允許把顯示屏放在離測量點 10 米（33 英尺）遠的地方，提高了測量靈活性。 無干擾的測量
可拆卸的磁性顯示屏可以方便地安放在容易查看的位置
無需拿著多用表進行測量，可以改善對探頭的關注度并提高了電氣測量的安全性
連接顯示屏后可以用作傳統的多用表
當顯示屏連接到多用表時，無線電發射器自動關閉
自動關機功能最大化電池壽命
最小值/最大值和平均值記錄允許自動捕獲異常情況
測試連續性和二極管
大型數字和背光方便讀取數值
電池壽命約為 400 小時
